Specification :
| Number of Door | 1 Door |
| Card Holders Capacity | 30000 |
| Log Events Capacity | 100000 |
| Communication | TCP/IP and RS-485 |
| Number of Readers Supported | 2 ( 26-bit Wiegand reader) |
| Types of Readers Supported | 6-bit Wiegand, others upon request |
| Number of Inputs | 2( 1 Exit Button, 1 Door Sensor) |
| Number of Outputs | 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) |
| Weight | 7.4lbs (3.35kg) |
| Enclosure | Powder Coated Aluminium |
| Mounting | Wall Mount |
| Recommended Power Supply | 12V DC, 1.5A |
| Dimensions (Bundle Only) | 380mm(L)X80mm(W) X 280mm(H) |

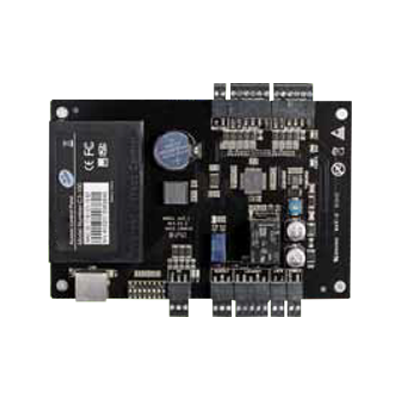

| Dimensions ( Board Only) : | (160mm×106mm) |
