Specification :
| Product Parameter | Parameter Description |

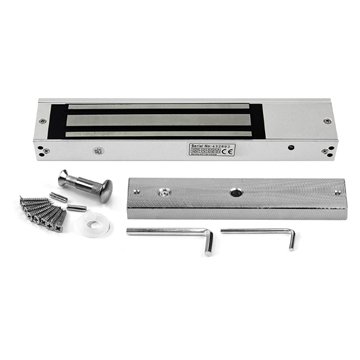

| Product Name | Single Door 600LBS Magnetic Lock |
| Lock Size | 250Lx48.5Wx25H(mm) |
| Armature Plate Dimension | 180Lx38Wx11H(mm) |
| Holding Force | 280KG(600LBS) |
| Input Voltage | DC12V (Adjustable DC24V) |
| Current | 12V/500mA(±10%) ; 24V/250mA(±10%) |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -20℃~+55℃(-4—131°F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Unit Weight | 2KG |
| Standard Package | 10PCS/CTS |
| Carton Weight | 20KG |
| Carton Size | 35*30*18 (cm) |
