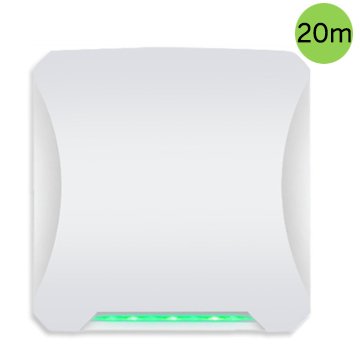

20M UHF RFID Reader
UHF-202420
| Product Parameter | Parameter Descr1ption |
| Blues IT And Security | UHF-202420 |
| Product Name | UHF RFID Long Range Card Reader |
| Dimension | 260x260x70mm |
| Recognition distance | Up to 20 meters |
| Default communication interface | Wiegand26, Wiegand34, RS485 |
| Option customized | RS232,RJ45 ( Ethernet ), WiFi, Relay |
| System parameters | ARM7 |
| Working frequency | National standard (920~925MHz) American standard(902-928MHz) European standard (865-868MHz) Other multinational frequency standards (customized) |
| Group reading performance | <200 tags |
| Tag protocol | Support IS01 8000-6B, IS018000-6C (EPC GEN2) protocol electronic tags |
| Frequency hopping mode | Broad spectrum frequency hopping FHSS) or fixed frequency, can be set by software; |
| Working mode | Active mode, response mode, passive mode, etc. |
| RF power | 0-33dBm (power software adjustable) |
| Antenna parameters | 9dBi linear polarization antenna (built-in) |
| Working voltage | +12V |
| Recognition prompt | Buzzer or LED flashing |
| Power consumption | <12W |
| Working temperature | -20℃ ～ +70℃ (customization required if out of range) |
| Working humidity | 20％ ～ 95％ (no condensation) |
| Storage temperature | -40℃ ～ +125℃ |
| Appearance/packaging size | 260*260*70mm/ 355*260*80mm |
| Net weight | 2400G |
| Gross weight | 3700KG |
| Secondary development | Provide dynamic link library (DLL) and demonstration software source code to support secondary development. |
| Remarks | The recognition distance and group reading performance depend on the tag performance and specific application scenarios, and can be customized as required |
