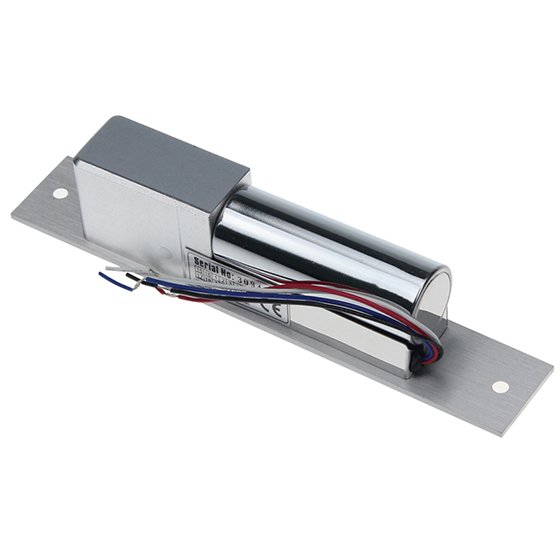

Specification :
I. Fail-Safe: Adjustable fail-safe (Power to lock) Adjustable to fail-safe (Power to lock) for public places.
| Face Plate | 205Lx35WX40H(mm) |
| Strike plate | 90Lx25Wx2H(mm) |
| Bolt | 16mm(Throw) x 16mm(Diameter) |
II. Built-in oval cylinder as unlocking the device
Use of oval cylinder to unlock when power cut occurred or during emergency
Built-in photo couplers door open push button input contact. The door will lock again automatically when door is not open within 9 seconds
III. Bolt lock Suitable For Wooden Door, Glass Door, Metal Door, Glass Door
| Fail-Safe | Power to lock |
| Voltage | DC12V |
| Start Current | 960mA |
| Standby Current | 130mA |
| Face place material | High Aluminum,Garrulous Line,Finished |
