Specification :
| Card Capacity | 20,000 |
| Event buffer | 1,00,000 |
| Communication | TCP/IP 10M/100M adaptive |
| Function Description | Control 2 doors, enter via cards swiping and exit via buttons, or both enter & exit via cards swiping |

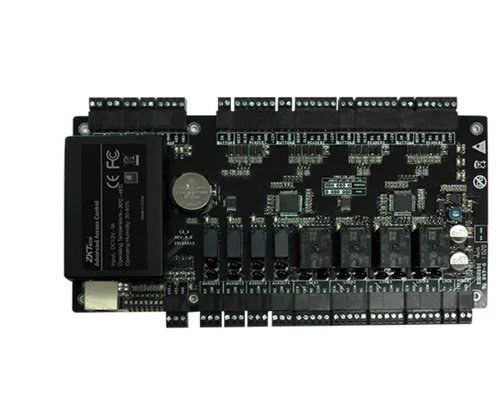

| PCB board size | 21.9 * 12.2 * 3.4cm |
| Controller case size | 273*228*65mm |
| Power supply | 12V DC 4-7A |
| Power consumption of circuit board | < 200mA |
| Door control output | 4 |
| Operation Temperature | -40 °C - 70°C |
| Operation Humidity | 10-90 % RH, No Condensation |
