Specification :
| Operating Temperature | 20° C to +65°C |
| Operating Humidity | 10% to 90% |
| Dimension(WxHxT) | 116 x 75 x 17.3mm |
| Beeper | Yes |
| LED Indicator | 2 Color LED Indicators(Red and Green) |
| Output Format | 26bit Wiegand (default) / 34bit Wiegand (default) |
| Input Port | 2ea (External LED Control, External Buzzer Control) |
| Power / Current | DC 6-14V / Max.70mA |
| Reading Time (Card) | ≤300ms |
| Communication | RS485 |
| Read Range | Up to 10CM |

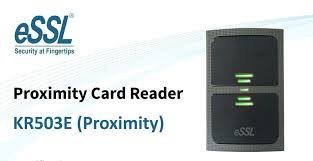

| KR503E | 125KHz Proximity card reader |
